Description
· Sensor:1/2.8”, CMOS, Effective Pixel
· Scanning Mode:Progressive
· Lens Mount:M12
· Lens1(teacher):Focus
· Lens2(student):Focus
· AF:Support
· Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
· Shutter:1/30s ~ 1/10000s
· White Balance:Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
· Digital Noise Reduction:2D&3D Digital Noise Reduction
· Backlight Compensation:Support
· EPTZ:Support
· Digital zoom :8x
· PoE:Support
· Lens 1 / 2 :Teacher mode / Student mode

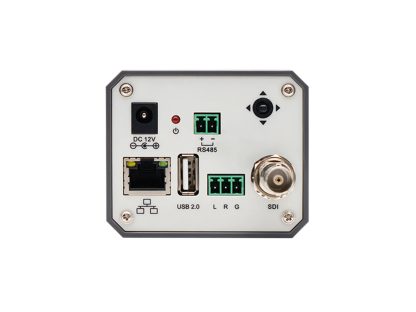

Input/Output Interface
· HD Output:1x 3G-SDI
· USB Interface:1xUSB 2.0, type A
· Network Interface:1xRJ45
· Audio Interface:1x line in
· Control Interface:1xRS485
· Power Jack:Type DC005（DC 12V）
Network Features
· Video Compression: H.264 / MJPEG
· Video Stream:The first, second, third, fourth stream
· The First Stream:1920×1080, 1280×720, 1024×576, 960×540, 640×480,640×360,352×288
· The Second Stream :3840×2160, 1920×1080,1280×720,1024×576,720×576, 720×408,640×360,480×272,320×240,320×180
· The Third Stream:1920×1080, 1280×720,1024×576,960×540,720×576,720×408,640×480,640×360,480×272,320×240,320×180
· The Fourth Stream:1920×1080, 1280×720,1024×576,960×540,720×576,720×408,640×480,640×360,480×272,320×240,320×180
· Video Bit Rate:32Kbps ~ 16384Kbps
· Bit Rate Type:Variable Rate, Fixed Rate
· Frame Rate: 1fps ~ 30fps
· Audio Compression:AAC,G711A
· Audio Bit Rate :96Kbps、128Kbps、256Kbps
· Support protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
General specification
· Input Voltage:DC 12V / PoE (802.3af)
· Input Current:0.5A（Max）
· Operating Temperature:-10°C ~ 40°C
· Storage Temperature:-40°C ~ 60°C
· Power Consumption:6W（Max）
· Dimension:72mm x 60mm x 130mm
· MTBF:>30000H
· N.W.:0.37
